Hing quality Pouch Cell Making Machine Semi-auto Battery Electrode Lamination Stacker Stacking Machine

Produce:

Working principle

This equipment is suitable for stacking process of lithium ion battery electrode. The equipment is designed with tension roller structure. Rolled isolation film is automatic constant tension controlled. It realizes Z-shaped laminated sheet by moving left and right by Motor, so that the stacking assembly of the whole electric core is realized in a reciprocating way. Separator feeding adopt constant tension, and electrode automatic correction function is arranged in the feeding process. The feeding process is neat and consistent.It has the feature of high efficiency of sacking and high precision of stacking. The size of different electrodes can be realized by adjusting the clamp. It is suitable for the research and development of stacking lithium ion battery and sample making.

Main parameters:

Correction accuracy	Separator width	Maximum separator roll	Applicable electrode specification	Tab length
0.05mm	≤200mm	φ250mm	L(100-200)mm, W(90-200)mm, H:4-12mm	≤30mm
Swing roll travel	Power	Air pressure source	Size	Weight
400mm	AC220V/50Hz	0.5MPa~0.7MPa	L465mm×W585mm×H540mm	30Kg

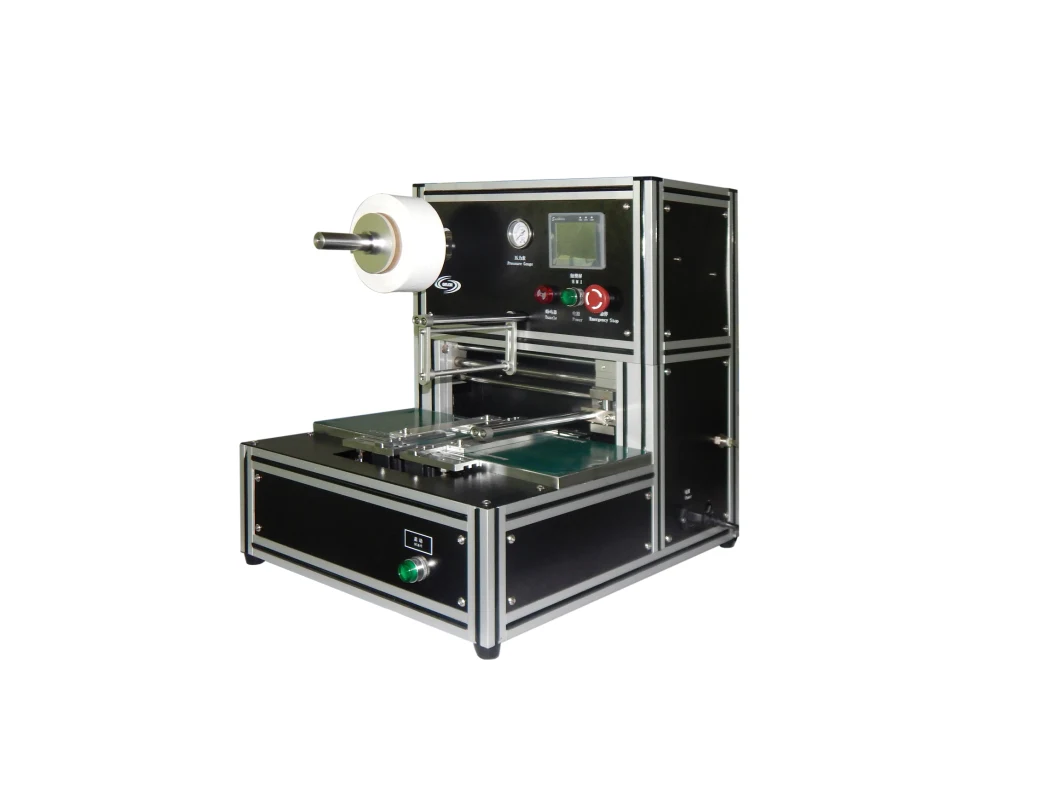

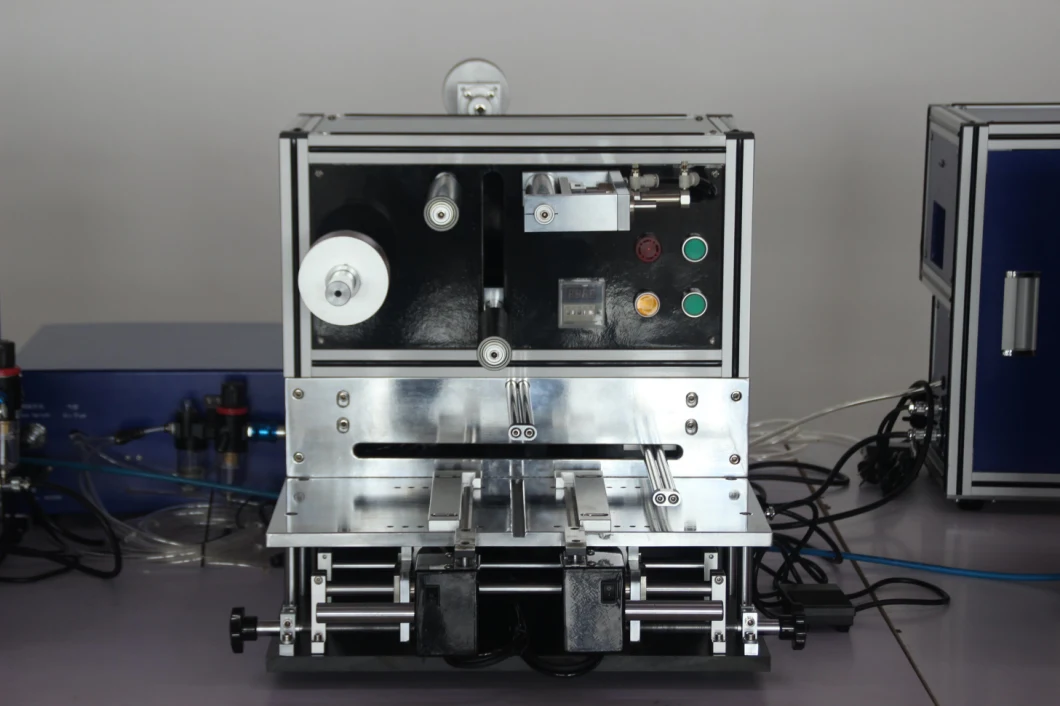

Picture:





Related Products: Nickel/Steel Strips

We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.

RFQ:

Q: Are you trading company or manufacturer ?
A: We are both manufacturer & trading company.


Q: Can I visit your factory?
A:Yes,very welcome.

Q:How can I visit your company?
A:You can take flight to Linyi or Shenzhen airport ,we can pick you up there.
Please mail us when you have the visit plan,we will confirm the schedule with you.

Q:What is your terms of delivery?
A:We accept EXW, FOB, CIF,DAP etc. You can choose the one which is the most convenient or cost effective for you.

Q: How is your delivery time?
A: 1-3 days for sample orders or some equipments in stock.
10-30 days for mass production order(based on different quantities)

Q: What about the after-sale service?
A: One years warranty and lifetime free technical support.

Q: Do you provide other equipments or materials?
A: Yes, we provide full set lithium ion battery materials, equipments and technology for lab line ,pilot line and production line.
